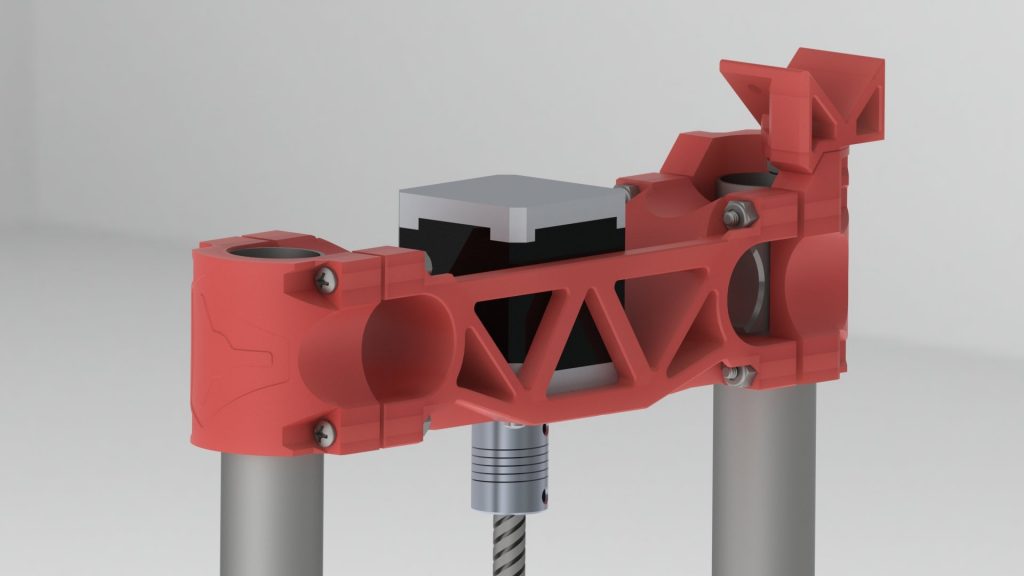

One of the challenges is how to incorporate the plotter x-axis assembly into the LowRider2 design. I am re-designing the Z Assembly shown below to carry the plotter X-axis assembly.
My redesign is starting to make sense. However, I do not have any 1″ conduit. And I promised I wouldn’t go to Home Depot. I only need two pieces 3 foot long. Does anyone have any lying around? If you leave it somewhere, I could come by and pick it up.

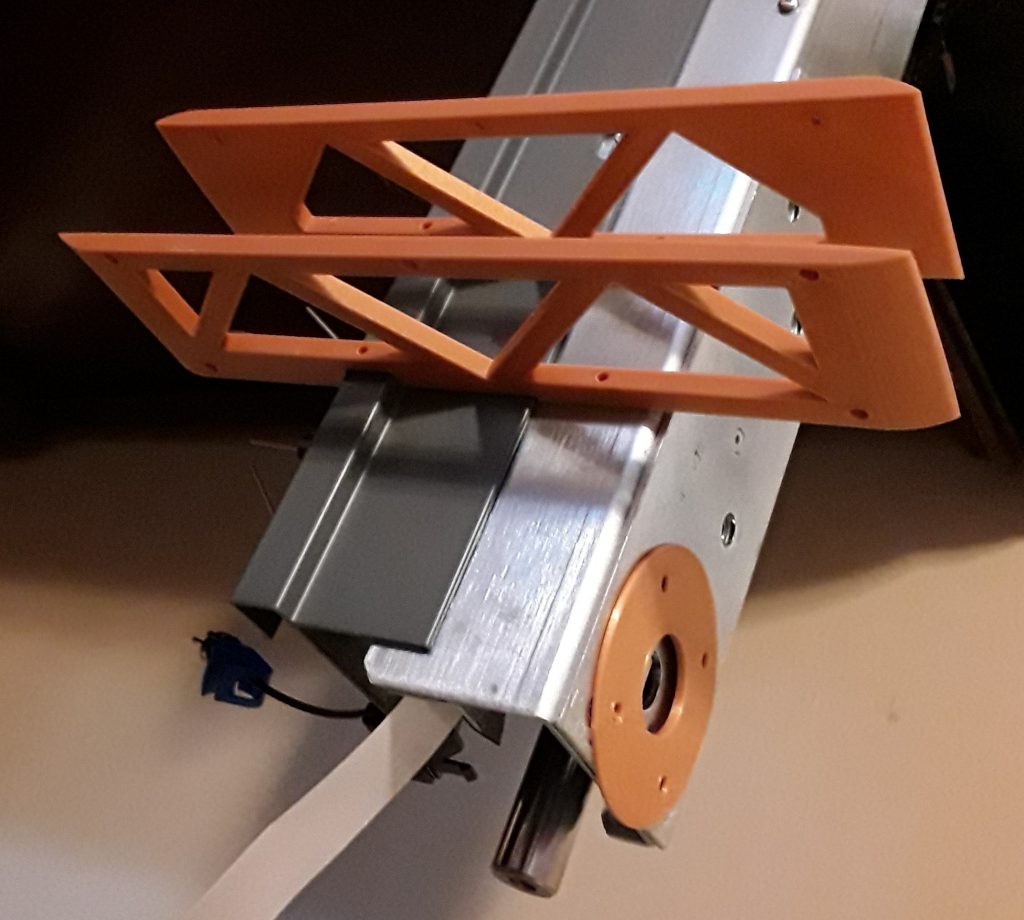

I have the two sides printed. They fit on the X-Axis as you see below. I am concerned that the four holes where the metal X axis will attach is too weak and the plastic might break. In the next rendition I will beef them up.
